Cutting Saw
Home > Products > UPVC Window Door Machine > Cutting Saw >
Double-head Cutting Saw for PVC Profile With Linear Rails
Technical Parameters Operation Air Pressure 0.5 ~ 0.8MPa Air Consumption 100L/min Input Voltage 380V 50Hz Input Power 2 1.5kW Cutting angle 90 ~ 45 Saw Blade specification 350 30 Cutting width height 200 100mm Cutting length 290 ~ 3500mm Ov
Single Head UPVC PVC Profile Window Door Cutting Machine
Input voltage 380V/50Hz(As Required) Input power 1.1KW Spindle rotary speed 2800rpm Air pressure 0.5~0.8Mpa Air consumption 60L/MIN Max cutting width 200MM Max cutting height 100MM Saw blade diameter 350MM Cutting Saw Package 100*75*155CM 1
Glazing Bead Saw for PVC Profile
Parameter Air Pressure 0.4~0.7MPa Air consumption 80L/min Input Voltage 380V 50~60Hz or As Customer need Input Power 2*0. 75Kw Cutting range 320-1800mm Cutting Width 120mm Cutting profile height 29mm Overall size 19007001350 (mm) Weight 300
Mulion Cutting Saw for PVC Profile
Model GLT-400 Power voltage 380V 50HZ Input power 2*0.75KW Air pressure 0.4~0.6MPa Air consumption 80L/min Main motor rotation speed 2800r/min Saw cutting width 120mm Cutting height 90mm Cutting length 300-1600mm Overall dimension 1900*700*

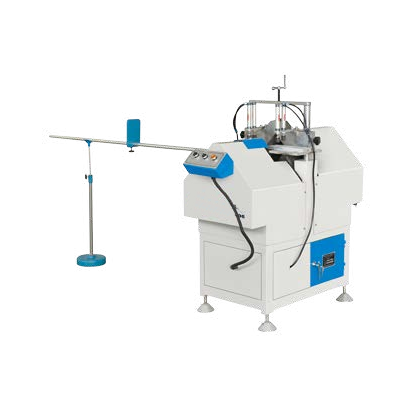

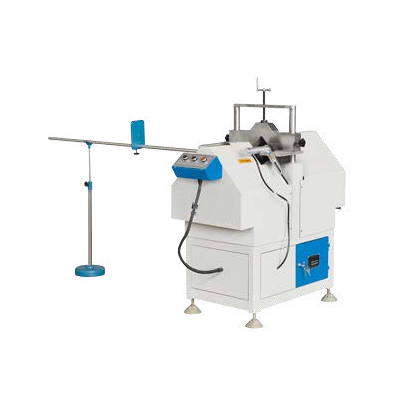

V-Cutting Saw for PVC Profile
M o del GLVW-65 Power supply 380V 50Hz Input power 2.2Kw Air pressure 0.4~0.6MPa Air consumption 100L/min Motor speed 2800r/min Cutting length 300~1700mm Cutting depth 65mm Dimension 1.350.61.35m Weight(about) 210Kg
