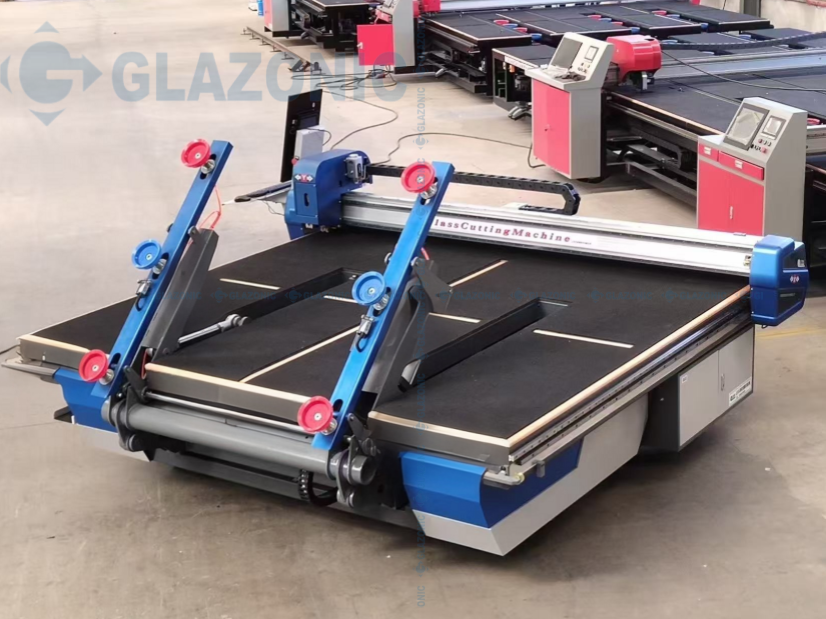

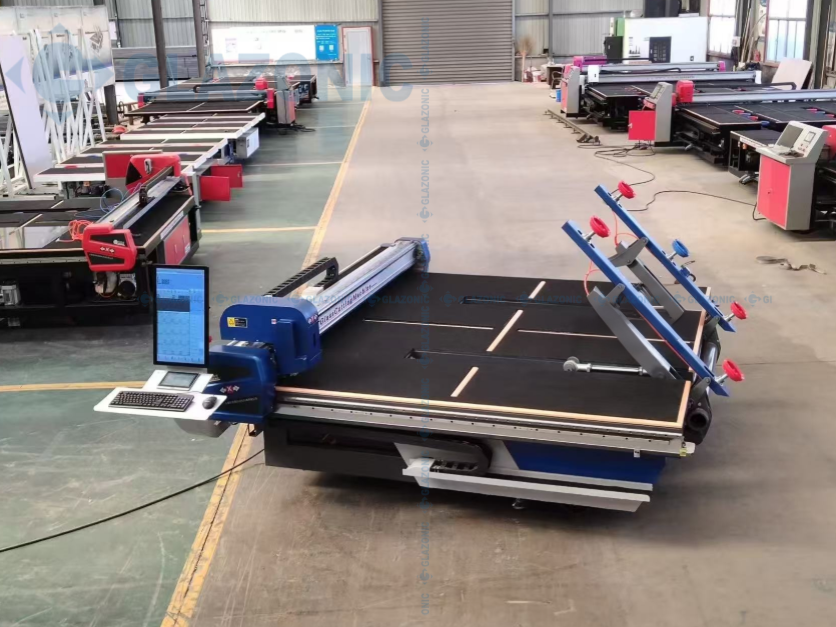

Model 2620 All-in-one Glass Cutting Machine

Basic Information

Place of Origin:	China
Brand Name:	GLAZONIC,GLAZONIC MACHINE
Model Series:	CNC2620

Payment & Shipping Terms

Minimum Order Quantity:	1 Set
Price:	Negotiable
Packaging Details:	Standard export packing
Delivery Time:	IN Stock
Payment Terms:	L/C, T/T, Western Union, MoneyGram, D/A, D/P
Supply Ability:	1 set,5 sets,10 sets,20 sets,50 sets,100 sets,

Inquire Now Whatsapp: 008617866711978

Product Description

Meta Description

The 2620 all-in-one CNC glass cutting machine integrates glass loading, cutting & breaking functions. Suitable for float glass, tempered glass, mirror processing. Stable performance, high precision, factory direct supply.

Product Introduction

The 2620 all-in-one glass cutting machine is a multifunctional CNC glass processing equipment, specially designed for flat glass cutting in door & window, mirror, glass furniture and architectural glass industries. This machine combines glass loading, automatic positioning, CNC cutting and breaking table into one unit, replacing separate manual glass handling and cutting devices. Operators can finish glass feeding and cutting work on one single machine, greatly saving workshop space and reducing labor cost. Adopts high-precision CNC control system and imported cutting head. The cutting trace is smooth without edge chipping. It can process different sizes of glass with flexible editing of cutting drawings. The machine body uses thickened welded steel frame, anti-deformation after stress relief treatment, ensuring long-term stable operation.

Core Functions

Automatic Glass Loading Pneumatic suction cup lifting system, safely pick up and transfer raw glass sheet onto the working table. Avoid manual carrying damage and safety risks.
CNC Automatic Cutting Support DXF drawing import. The system automatically calculates layout to optimize material utilization. Adjustable cutting pressure for different glass thickness.
Integrated Breaking Table After cutting, the air flotation table helps move glass easily. Operators can separate glass pieces quickly on the built-in breaking platform.
Air Flotation Working Surface Air cushion design reduces friction between glass and table surface. Glass can be moved and positioned effortlessly without scratching glass surface.
Intelligent Control System Touch screen operation, simple UI. Store multiple cutting programs. Real-time display of working status, with emergency stop and overload protection.

Application Scenarios

Widely used for processing float glass, mirror glass, architectural window glass, furniture glass, cabinet glass, shower door glass. Ideal for small & medium glass processing factories.

Advantages

✅ All-in-one design: loading + cutting + breaking, save factory space
✅ High cutting accuracy, clean cutting edge, no chipping
✅ Air flotation table, prevent glass scratch during movement
✅ Servo driving, stable running, low failure rate
✅ Easy operation, reduce dependence on skilled workers
✅ Support custom software language for overseas customers

Product Parameters

Item	Specification
Model	2620 All-in-one Glass Cutting Machine
Max Processing Size	2600mm × 2000mm
Min Cutting Size	100mm × 100mm
Applicable Glass Thickness	3mm – 12mm
Cutting Precision	±0.1mm
Working Table Type	Air flotation table
Driving System	Servo motor drive
Control System	CNC touch screen system, support DXF file
Cutting Speed	0–120 m/min (adjustable)
Power Supply	380V / 50Hz
Total Power	11 KW
Overall Dimension	3200 × 2600 × 1200 mm
Machine Weight	3800 KG

Send Us Your Inquiry

GET A QUOTE

Tell us your requirements and our team will contact you with product details, pricing and shipping information.

Frequently Asked Questions

Q1: Are you a manufacturer?

A:Yes, we are a professional manufacturer with our own factory. You are welcome to visit us anytime.

Q2: Is your quotation based on the retail price for a single unit or the agent price?

A: Actually, the price is the same whether you buy just one unit or become an agent. But here’s the good part—if you’re an agent, we won’t sell in your designated territory at all. So even though the price is the same, you get full protection and exclusive opportunities in your market.

Q3: What are your payment terms?

A: We generally require staged payments: a 20% deposit upon order confirmation to secure production, and the remaining 80% balance should be settled before shipment.

Q4: Can I watch a real video of the machine before purchasing?

A: Absolutely! We provide demonstration videos, authentic customer feedback, and can arrange a live video call to show you the machine in actual operation.

Q5: What is your warranty policy?

A: Our warranty policy is as follows:
Basic Warranty:
A:One-year warranty for the whole machine.
B:Two-year warranty for core components (excluding consumables/spare parts).
After the warranty period: customers can purchase consumables and spare parts at distributor prices for life, and receive repair guidance via video or email.

Q6: Do I need to pay import taxes? How about the customs clearance process?

A: Import taxes depend on the regulations of your country/region. Normally, you need to pay local duties/taxes by yourself. However, we will prepare all necessary documents and assist you during the customs clearance process.

Q7: What is your production and delivery time?

A: For standard models, delivery usually takes 3–15 working days. For customized equipment, delivery usually takes 10–35 working days.

Q8: What kind of operation guidance do you provide after purchasing the machine?

A:English manuals and video tutorials.
B:One-on-one online training.
C:Option to dispatch professional engineers for on-site installation, commissioning, and training.

Q9: Can you deliver to my country? How much is the shipping cost?

A: Yes, we provide worldwide delivery service. Please provide your city and country/region, and we will recommend the best shipping method (by sea, air, or door-to-door) and offer you an accurate freight quotation.

Q10: Can I request customized equipment?

A: Of course. We can meet diverse customer needs. You can customize machine size, functions, materials, voltage, color, logo, and even the complete production line layout.
