3726 Full Automatic Glass Cutting Production Line

Product Introduction

The 3726 Full Automatic Glass Cutting Production Line is a complete industrial-grade continuous processing system tailored for large-scale and high-volume flat glass production. Different from single independent machines, this production line integrates all core processing procedures including automatic glass loading, high-precision CNC cutting, air flotation conveying and synchronous glass breaking into one streamlined production system, realizing fully automated one-stop operation from raw glass feeding to finished piece separation.
Equipped with upgraded heavy-duty inclined large loading arm, high-speed CNC cutting host and intelligent synchronous breaking platform, the line perfectly matches 3700×2600mm ultra-large glass processing requirements. The whole production line adopts modular integrated design and thickened stress-relief steel frame, ensuring stable continuous operation for 24 hours. With intelligent centralized control system and automatic nesting optimization technology, it effectively reduces manual intervention, lowers glass breakage rate and material waste, becoming the core production equipment for large professional glass processing factories to upgrade automated production lines.

Core Functions

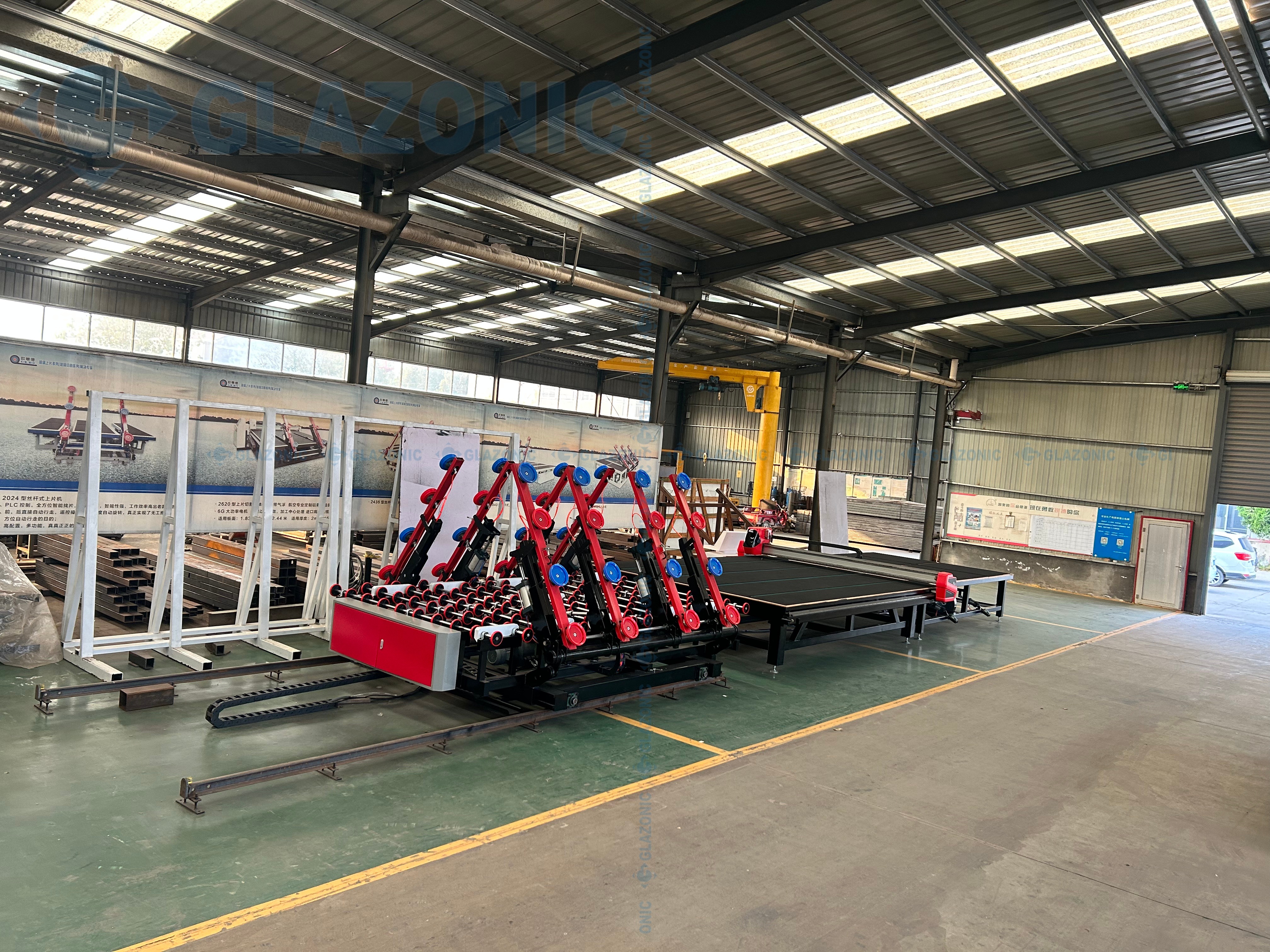

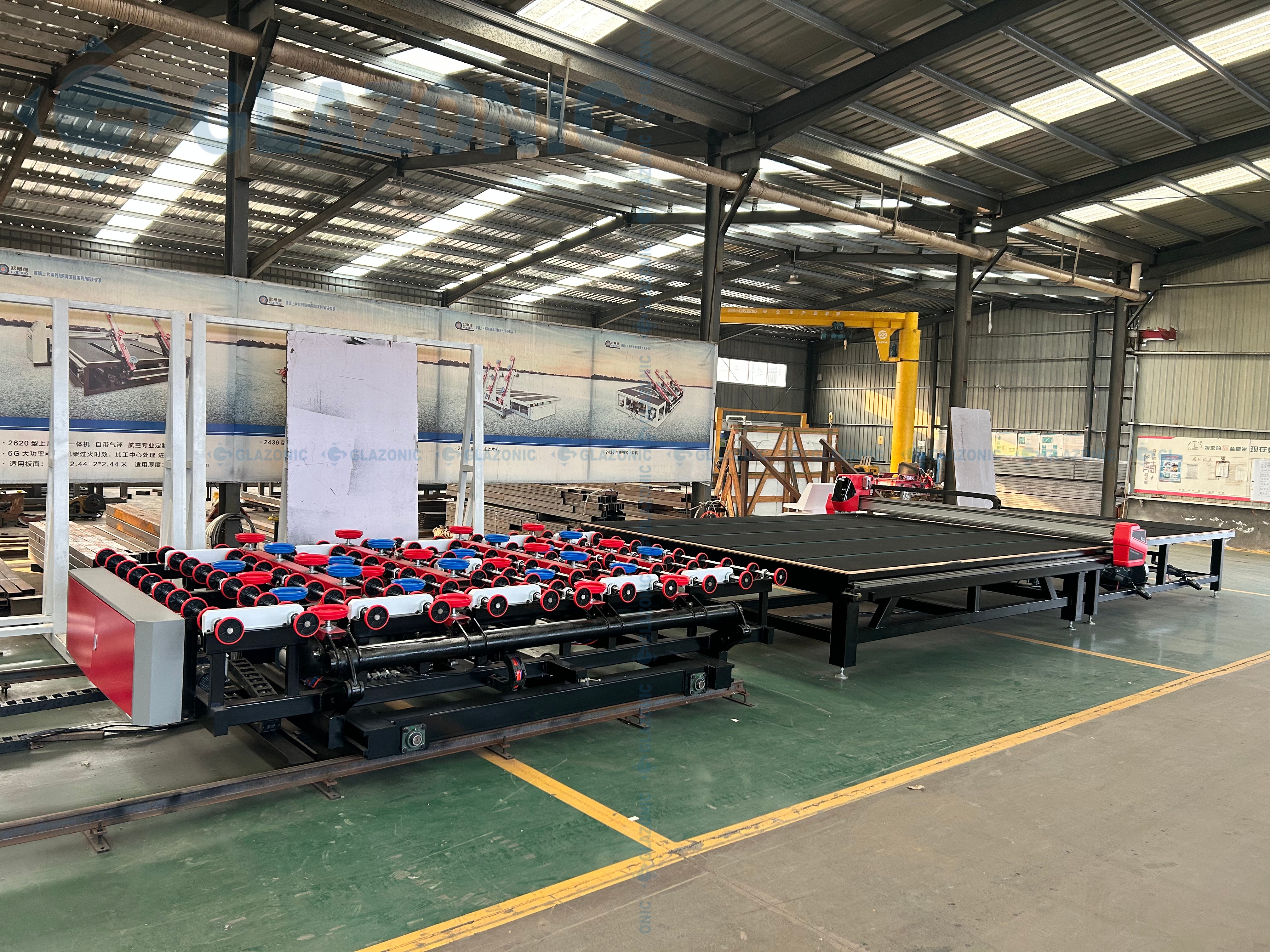

1. Automatic Inclined Large Arm Feeding System
Adopts heavy-duty upgraded inclined large loading arm with ultra-large vacuum suction coverage and strong bearing capacity. It automatically completes glass suction, tilting lifting and precise table feeding for 3–12mm thick oversized glass sheets. The mechanical tilting feeding structure avoids glass shaking, slipping and corner damage during feeding, ensuring stable and safe raw material input for the whole production line.
2. High-Precision CNC Intelligent Cutting Module
Supports DXF drawing import, arbitrary straight line, rectangle and special-shaped cutting. The industrial CNC system intelligently optimizes nesting layout in real time to maximize glass utilization. Adjustable multi-stage cutting pressure adapts to different glass thicknesses, delivering smooth, chip-free and crack-free cutting lines for large heavy glass panels.
3. Full Air Flotation Conveying System
The whole line adopts full-coverage air flotation conveying platform. Uniform air cushion isolation eliminates friction scratch on glass surface during transmission. Ultra-large glass sheets can be positioned and transmitted smoothly and synchronously, ensuring zero damage to glass surface during continuous line operation.

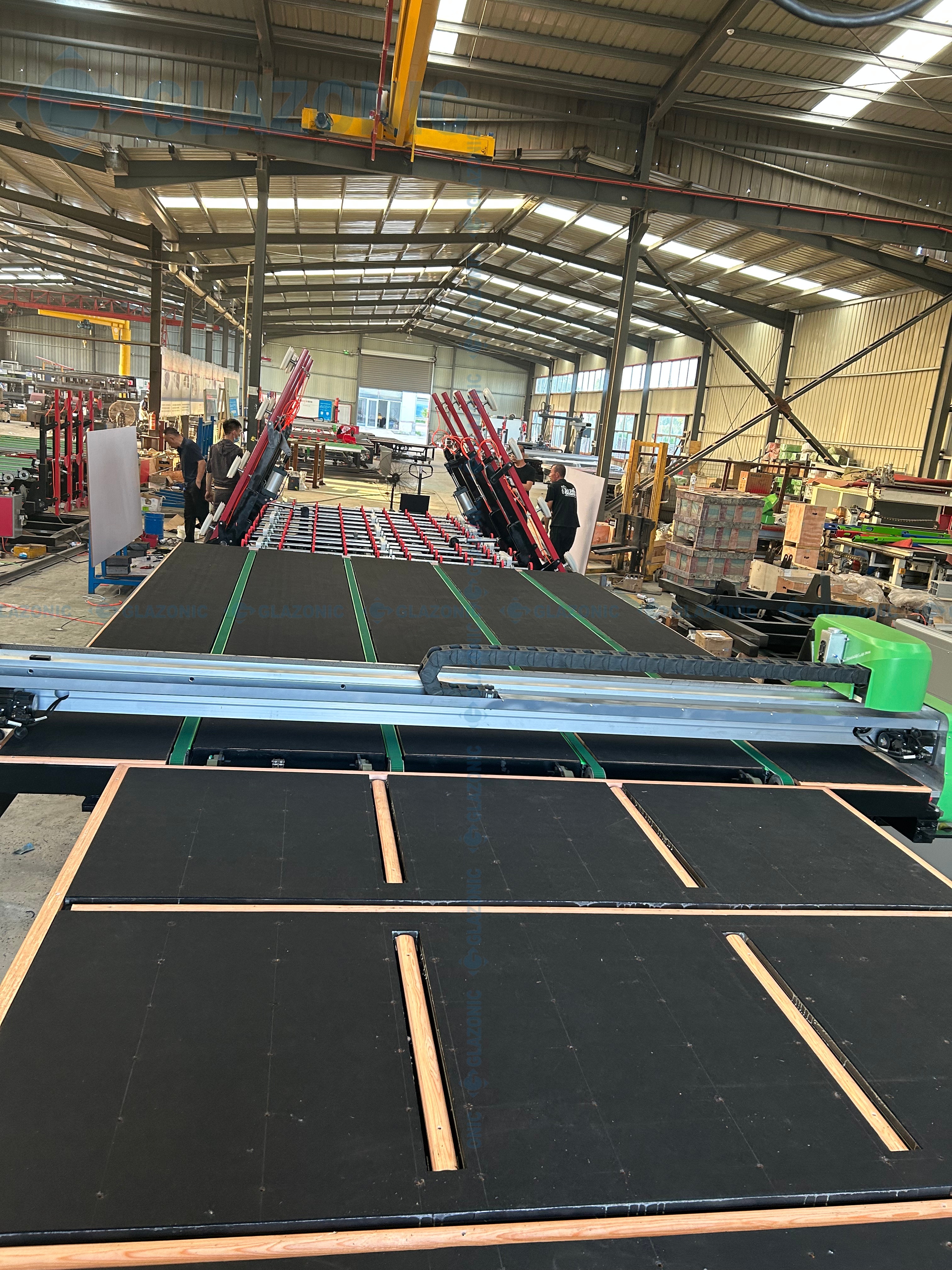

4. Synchronous Automatic Breaking Platform
Matching the large-size processing specification, the integrated extended breaking table realizes synchronous breaking after cutting. After CNC scoring is completed, the system automatically conveys glass to the breaking station, and workers can complete batch separation quickly. The streamlined connection eliminates intermediate handling links and greatly improves production cycle efficiency.
5. Modular Intelligent Central Control System
Unified touch screen central control panel realizes one-key start, program storage, automatic layout and real-time operation monitoring. Equipped with suction loss protection, overload protection, emergency stop self-lock and fault self-diagnosis functions. The whole line supports unattended continuous operation, reducing manual operation threshold and labor cost.
6. Full Servo Synchronous Driving System
Adopts full servo motor synchronous drive for cutting and conveying modules, featuring fast response, high positioning accuracy and stable operation. It effectively avoids position deviation and transmission jitter during high-speed continuous production, ensuring consistent processing accuracy of each glass piece.


Application Scenarios

Suitable for mass automated production of large-size architectural curtain wall glass, oversized door and window glass, bathroom shower glass, large furniture glass and super mirror glass. It is specially designed for medium and large glass processing enterprises with high output requirements, helping factories realize automated assembly line production and improve overall production capacity.

Product Advantages

✅ Full-Process Automated Assembly Line: Integrates loading, cutting, conveying and breaking into one production line, realizing unmanned continuous operation and greatly saving labor costs.
✅ Upgraded Inclined Arm Stable Feeding: Heavy-duty large inclined arm structure ensures stable suction and feeding of ultra-large heavy glass, effectively reducing overall breakage rate of the production line.
✅ High-Yield & High-Efficiency Production: Streamlined docking of each module eliminates intermediate waiting and handling links, significantly improving daily production output and processing efficiency.
✅ Industrial Stable & Durable: Integral stress-relief steel frame and full servo drive ensure 24-hour stable operation without deformation or position deviation, low failure rate.
✅ Intelligent Material Saving: Automatic nesting optimization system improves glass utilization rate, reducing long-term raw material consumption and production costs.
✅ Zero-Scratch Glass Processing: Full air flotation conveying design protects glass surface from friction damage, ensuring high-quality finished glass for high-end market orders.
