2236 Glass Tilting Table Glass Handling Tilting Table

Basic Information

Place of Origin:	China
Brand Name:	GLAZONIC,GLAZONIC MACHINE
Model Series:

Payment & Shipping Terms

Minimum Order Quantity:	1 Set
Price:	Negotiable
Packaging Details:	Standard export packing
Delivery Time:	IN Stock
Payment Terms:	L/C, T/T, Western Union, MoneyGram, D/A, D/P
Supply Ability:	1 set,5 sets,10 sets,20 sets,50 sets,100 sets,

Inquire Now Whatsapp: 008617866711978

Product Description

Meta Description

2236 glass tilting table is designed for large flat glass loading, turning and transferring. Stable vacuum suction, low breakage rate, perfect match with glass cutting machine, insulating glass production line.

Product Introduction

The 2236 glass tilting table is special auxiliary equipment for flat glass processing. It is widely matched with glass cutting machine, insulating glass line and tempering glass production line.

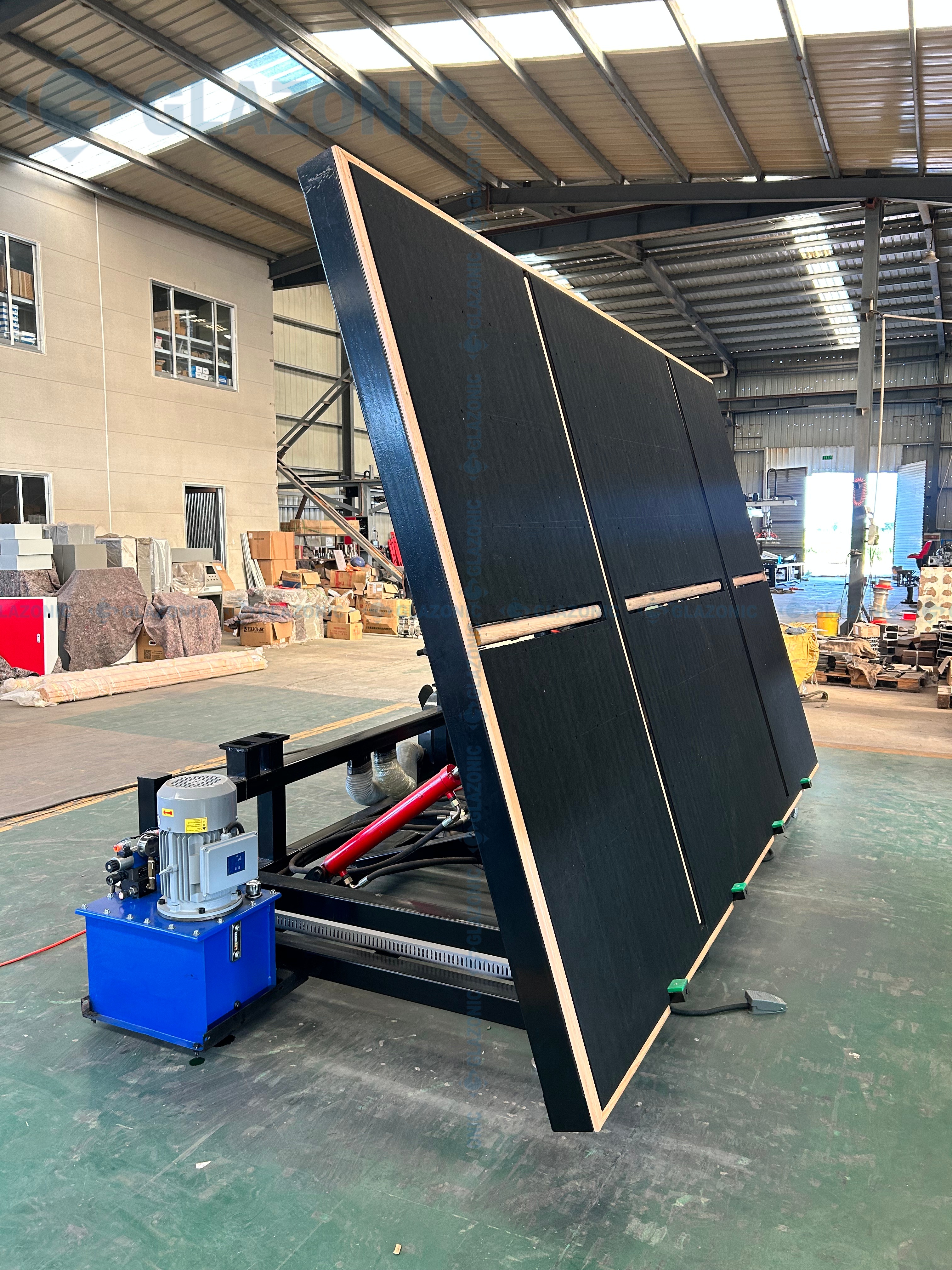

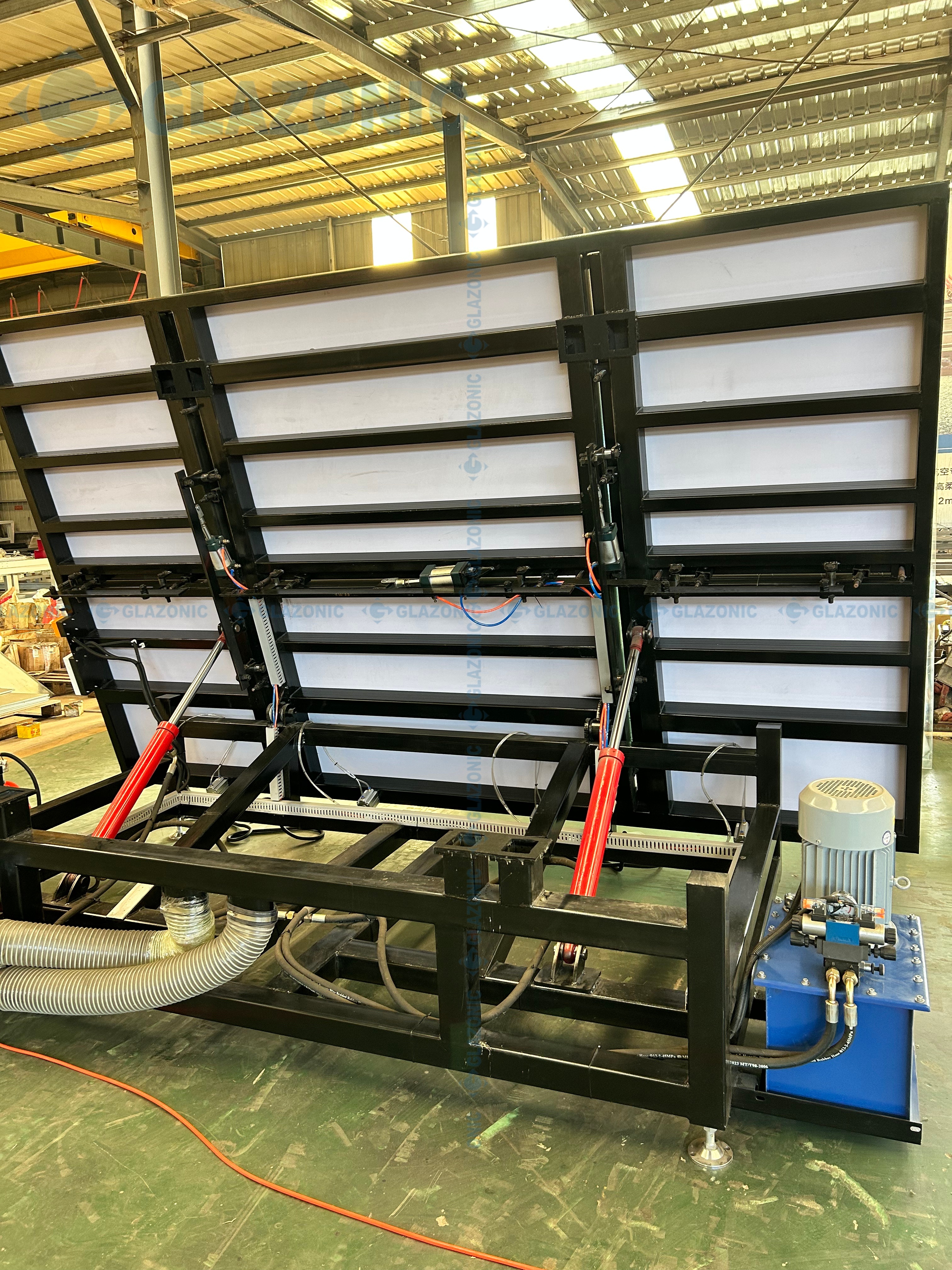

This tilting table adopts heavy-duty welded steel frame with stress relief treatment. Equipped with reliable vacuum suction system, it can pick up the vertical glass sheet from the glass rack and smoothly turn it to horizontal position, realizing safe glass feeding. It greatly reduces heavy manual glass handling, cuts labor cost and effectively avoids glass chipping or breaking caused by manual carrying.
Suitable for 3–19mm float glass, tempered glass, insulated glass, mirror. Widely used in door & window glass workshop, glass deep processing factory.

Core Functions

Vacuum Suction & Stable Tilting
Multiple high-strength vacuum suction cups evenly distributed. Firmly hold glass panel, complete vertical-to-horizontal turning smoothly. Pressure protection alarm will trigger if vacuum loss happens.
Heavy-duty & Deformed-resistant Frame
Integral thick steel welding + stress relief annealing. Long-time continuous operation without deformation, stable for large-size glass.
Simple Electrical Control System
Independent control cabinet, button operation. Optional foot switch for convenient one-hand operation. Adjustable tilting speed to adapt different glass thickness.
Safety Protection Mechanism
Vacuum pressure monitoring, emergency stop button, anti-collision buffer. Prevent glass falling during tilting operation.
Easy Connection With Glass Cutting Machine
Can be docked with 2620 glass cutting machine and other glass processing equipment, forming automatic glass feeding workflow.

Application Scenarios

Glass deep processing plants, PVC/aluminum door and window factories, insulating glass production lines, mirror and furniture glass processing workshops. Used for glass loading before cutting, transferring before tempering and insulating glass assembly.

Product Advantages

✅ Reduce manual labor, avoid worker injury from heavy glass
✅ Low glass breakage rate, vacuum monitoring prevents falling risk
✅ Compatible with most glass cutting machines and insulating glass lines
✅ Robust steel structure, low failure rate, easy maintenance
✅ Adjustable tilting speed, suitable for various glass thickness and sizes

Product Parameters

Item	Specification
Model	2236 Glass Tilting Table
Max Glass Size	2200mm × 3600mm
Applicable Glass Thickness	3–19 mm
Max Loading Weight	800 KG
Tilting Angle	0° ~ 90° adjustable
Power Supply	380V / 50Hz
Total Power	5.5 KW
Control Mode	Electric control, optional foot pedal
Machine Weight	2800 KG

Send Us Your Inquiry

GET A QUOTE

Tell us your requirements and our team will contact you with product details, pricing and shipping information.

Frequently Asked Questions

Q1: Are you a manufacturer?

A:Yes, we are a professional manufacturer with our own factory. You are welcome to visit us anytime.

Q2: Is your quotation based on the retail price for a single unit or the agent price?

A: Actually, the price is the same whether you buy just one unit or become an agent. But here’s the good part—if you’re an agent, we won’t sell in your designated territory at all. So even though the price is the same, you get full protection and exclusive opportunities in your market.

Q3: What are your payment terms?

A: We generally require staged payments: a 20% deposit upon order confirmation to secure production, and the remaining 80% balance should be settled before shipment.

Q4: Can I watch a real video of the machine before purchasing?

A: Absolutely! We provide demonstration videos, authentic customer feedback, and can arrange a live video call to show you the machine in actual operation.

Q5: What is your warranty policy?

A: Our warranty policy is as follows:
Basic Warranty:
A:One-year warranty for the whole machine.
B:Two-year warranty for core components (excluding consumables/spare parts).
After the warranty period: customers can purchase consumables and spare parts at distributor prices for life, and receive repair guidance via video or email.

Q6: Do I need to pay import taxes? How about the customs clearance process?

A: Import taxes depend on the regulations of your country/region. Normally, you need to pay local duties/taxes by yourself. However, we will prepare all necessary documents and assist you during the customs clearance process.

Q7: What is your production and delivery time?

A: For standard models, delivery usually takes 3–15 working days. For customized equipment, delivery usually takes 10–35 working days.

Q8: What kind of operation guidance do you provide after purchasing the machine?

A:English manuals and video tutorials.
B:One-on-one online training.
C:Option to dispatch professional engineers for on-site installation, commissioning, and training.

Q9: Can you deliver to my country? How much is the shipping cost?

A: Yes, we provide worldwide delivery service. Please provide your city and country/region, and we will recommend the best shipping method (by sea, air, or door-to-door) and offer you an accurate freight quotation.

Q10: Can I request customized equipment?

A: Of course. We can meet diverse customer needs. You can customize machine size, functions, materials, voltage, color, logo, and even the complete production line layout.
