2620 All-in-one Glass Cutting Machine with Breaking Table

Meta Description

2620 CNC glass cutting integrated machine equipped with built-in breaking table. Combine glass loading, CNC cutting and glass breaking in one station. High precision for architectural glass, mirror and furniture glass processing. Factory direct supply.


Product Introduction

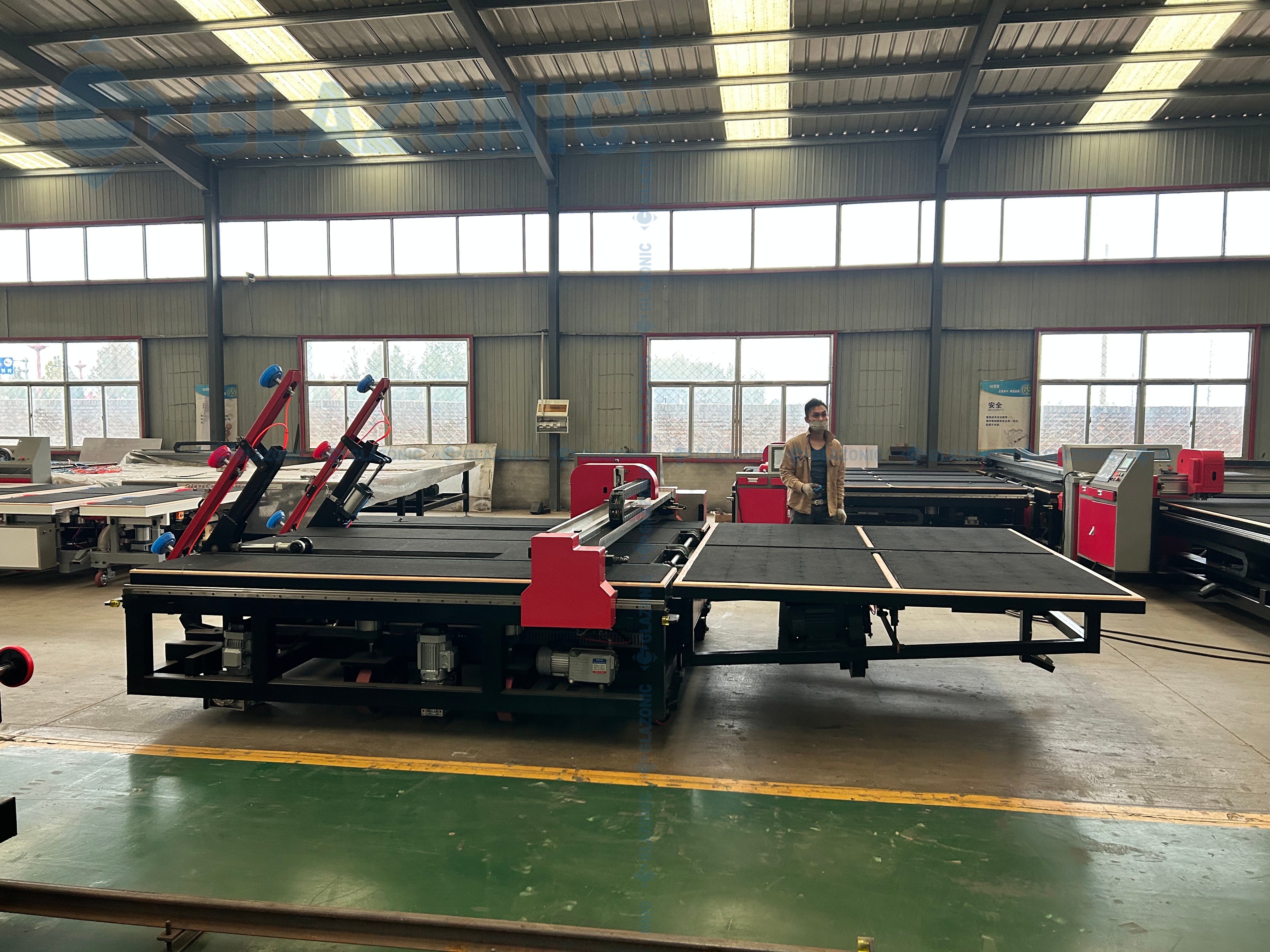

The 2620 all-in-one glass cutting machine with breaking table is an upgraded CNC glass processing solution. It integrates automatic glass loading, CNC cutting system and independent breaking table on one machine frame. Traditional glass cutting equipment requires moving cut glass to a separate breaking station. This model adds a built-in breaking table right beside the cutting area. After the CNC completes cutting lines, workers can break the glass pieces instantly on the attached breaking platform, eliminating extra glass transportation. The machine adopts heavy-duty welded steel frame with stress relief treatment, effectively preventing frame deformation during long-time heavy load work. High precision servo drive system and imported cutting wheel ensure clean cutting lines without chipping. It is widely used in window & door glass, mirror, shower glass, furniture glass and architectural glass factories.

Core Functions

1. Automatic Glass Loading System Pneumatic suction cup structure safely lifts raw glass sheet and places it on air flotation table. Reduce manual handling and avoid glass breakage & safety accidents.
2. CNC Automatic Cutting Support DXF file import. The control system automatically optimizes nesting layout to improve glass material utilization. Adjustable cutting pressure to fit different glass thickness.
3. Integrated Breaking Table Built-in independent breaking table connected with cutting station. Once cutting path is finished, operators can break the glass directly on this table. No need to transfer glass to another separate table, save workshop space and labor time.
4. Air Flotation Working Surface Air cushion function generates air layer between glass and tabletop. Glass can slide and position smoothly without scratching glass surface.
5. Intelligent Touch Screen Control Simple touch screen operation interface. Save multiple cutting drawing programs. Real-time working status display, equipped with emergency stop and overload protection.
6. High Stability Servo Motion System Servo motors drive X/Y axis movement, stable running, low noise and long service life. Guarantee consistent cutting accuracy for mass production.

Application Scenarios

Suitable for float glass, mirror glass, building door & window glass, cabinet glass, shower room glass, furniture glass. Perfect for medium and small glass processing factories that want to simplify production workflow.

Product Advantages

✅ Combined cutting + breaking table, one station finish cutting and breaking, reduce glass handling steps
✅ Heavy duty welded frame, stable performance for long term continuous production
✅ Air flotation table prevents glass scratches
✅ Servo drive, high cutting precision, neat cutting edge, no chipping
✅ Support DXF drawing import, automatic nesting to save glass raw material
✅ Compact overall structure, save factory floor space
✅ Simple operation, less training required for workers
✅ Customizable language system for global customers
