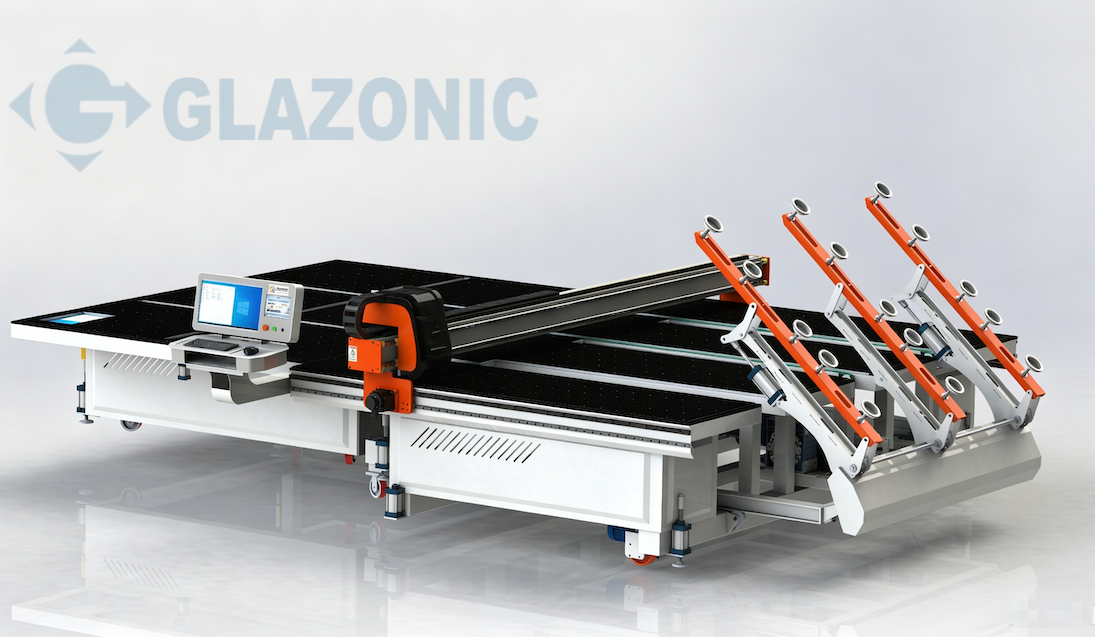

3826 Full Automatic Laminated Glass Cutting Machine

Basic Information

Place of Origin:	China
Brand Name:	GLAZONIC,GLAZONIC MACHINE
Model Series:	3826

Payment & Shipping Terms

Minimum Order Quantity:	1 Set
Price:	Negotiable
Packaging Details:	Standard export packing
Delivery Time:	IN Stock
Payment Terms:	L/C, T/T, Western Union, MoneyGram, D/A, D/P
Supply Ability:	1 set,5 sets,10 sets,20 sets,50 sets,100 sets,

Inquire Now Whatsapp: 008617866711978

Product Description

Meta Description

3826 full automatic laminated glass cutting machine, CNC intelligent cutting for PVB/EVA laminated glass. High precision, fast speed, stable performance, suitable for architectural, automotive and decorative laminated glass mass production.

Product Introduction

The 3826 Full Automatic Laminated Glass Cutting Machine is a professional CNC cutting equipment specially designed for laminated glass processing. Targeting the cutting difficulties of double-layer and multi-layer laminated glass such as uneven cutting, film pulling and edge cracking, this machine integrates intelligent CNC control, high-speed servo drive and precision diamond cutting technology to realize one-time precise cutting of glass and intermediate film.
Adopting heavy-duty welded steel frame with stress relief treatment, the machine ensures long-term high-speed operation without deformation. Equipped with 360° rotatable high-precision cutting head and intelligent nesting system, it supports custom cutting of various shapes. It is compatible with PVB and EVA laminated glass of different thicknesses, solving the pain points of low efficiency, poor finished product quality and high material waste in traditional manual and semi-automatic laminated glass cutting. It is widely applied in architectural glass, automotive glass, door and window glass, decorative laminated glass and other industrial production scenarios.

Core Functions

1. Professional Laminated Glass Cutting
Specially optimized cutting process for laminated glass, realizing synchronous cutting of glass layer and PVB/EVA film layer without film stretching, peeling or burrs. Effectively avoid edge chipping and cracking, greatly improve the yield of laminated glass finished products.
2. High-Speed CNC Intelligent Cutting
Adopts industrial CNC touch screen control system, supports DXF file import and custom graphic programming. The cutting head can rotate 360° freely, realizing precise cutting of straight lines, arcs and special-shaped patterns. Built-in intelligent nesting algorithm optimizes layout to maximize glass utilization and reduce raw material waste.
3. High-Precision Servo Drive System
X/Y axis full servo synchronous drive, with maximum cutting speed up to 200m/min and stable operation without vibration. The repeated positioning accuracy reaches ±0.1mm, ensuring consistent dimensional accuracy of each glass piece and meeting high-standard engineering processing requirements.
4. Wide Compatibility & Adjustable Parameters
Covers common laminated glass thickness specifications, applicable to 2-19mm thick laminated glass with 0.38-1.52mm PVB/EVA interlayer film. Cutting pressure and speed can be adjusted intelligently according to glass thickness and film material to adapt to different processing demands.
5. Stable & Safe Operation System
Equipped with high-strength anti-slip working platform to ensure stable glass positioning during high-speed cutting. Multiple safety protection devices including emergency stop, overload protection and fault self-diagnosis are configured. The operation interface is simple and intuitive, and workers can master the operation quickly after short training.

Application Scenarios

Architectural laminated glass processing, automotive safety glass production, door and window insulating glass, curtain wall glass, decorative laminated glass, bathroom tempered laminated glass, and various industrial safety laminated glass processing factories.

Product Advantages

✅ Professional Laminated Glass Cutting: Special process for PVB/EVA laminated glass, no film pulling or peeling, smooth and burr-free cutting edge, high finished product yield.
✅ Ultra-High Cutting Precision & Speed: Full servo drive, ±0.1mm precision and 200m/min high-speed cutting, greatly improve production efficiency.
✅ Intelligent Material Saving: Automatic graphic nesting layout, effectively reduce glass scrap and lower production cost.
✅ Strong Compatibility: Adapt to multiple specifications of laminated glass and interlayer films, meet diversified processing demands.
✅ Durable & Stable Performance: Heavy-duty stress-relief frame, long-term continuous operation without deformation, low failure rate.
✅ Easy Operation & High Safety: Intelligent touch screen control + full safety protection system, low labor dependence and high operation safety.

Product Parameters

Item	Specification
Model	3826 Full Automatic Laminated Glass Cutting Machine
Max Processing Size	3660mm × 2440mm
Applicable Glass Thickness	2–19mm (Laminated glass)
Interlayer Film Thickness	0.38–1.52mm (PVB/EVA)
Cutting Precision	±0.1mm
Max Cutting Speed	0–200 m/min (adjustable)
Cutting Head	360° rotatable diamond cutting head
Control System	CNC touch screen, support DXF import
Power Supply	380V / 50Hz
Total Power	12 KW
Working Air Pressure	0.8m³/min (1MPa)
Overall Dimension	4350 × 2950 × 1200 mm
Machine Weight	2000 KG
