2236 Automatic Glass Loading Machine

Product Introduction

The 2620 & 3726 Automatic Glass Loading Machine is a professional supporting feeding equipment customized for flat glass cutting machines and assembly line production. Divided into two specifications of 2600×2000mm and 3700×2600mm, it perfectly matches small and medium-sized 2620 cutting tables and large-format 3726 cutting machines, solving the pain points of manual heavy handling, low efficiency and high breakage rate in glass processing workshops.

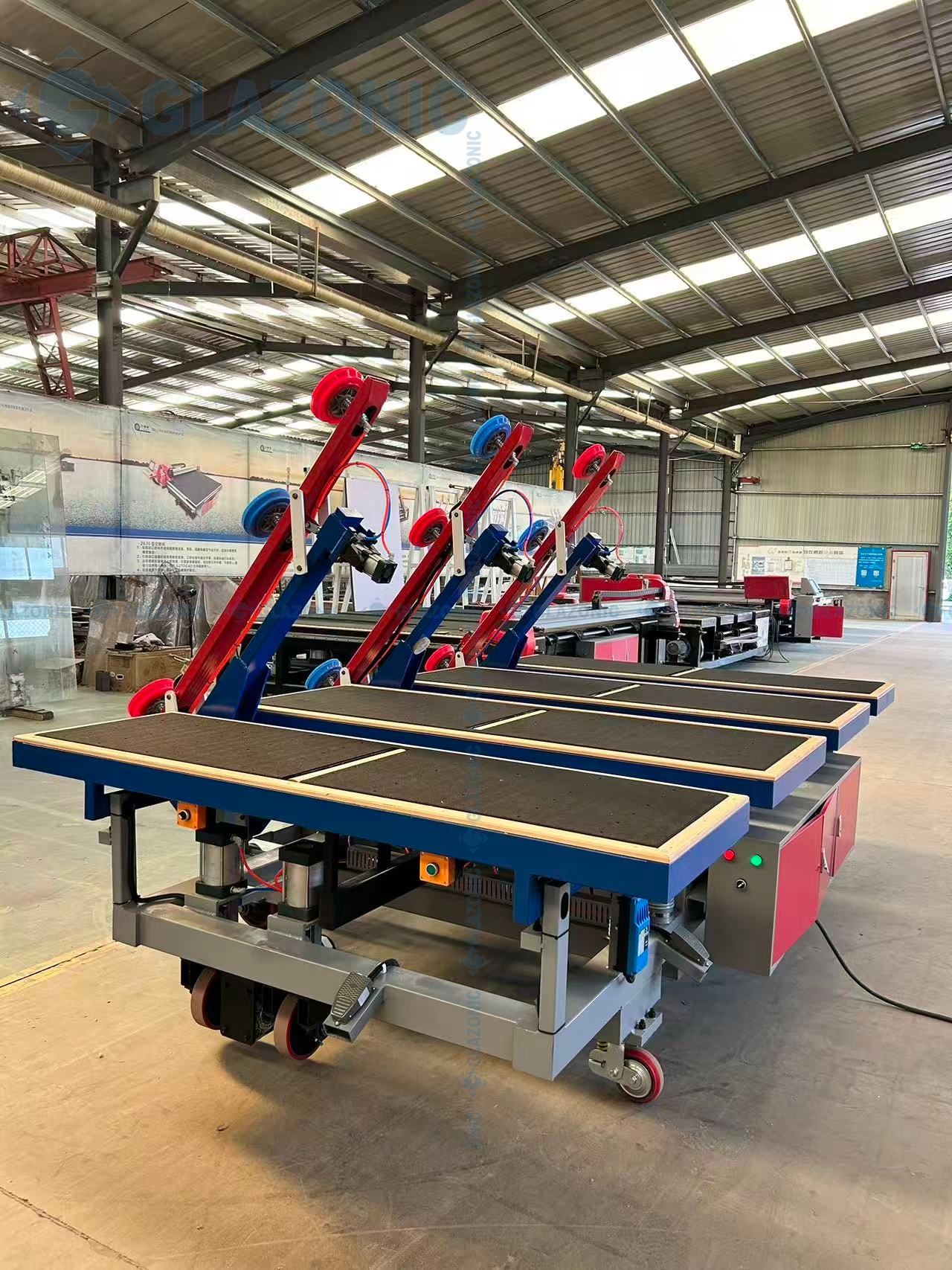

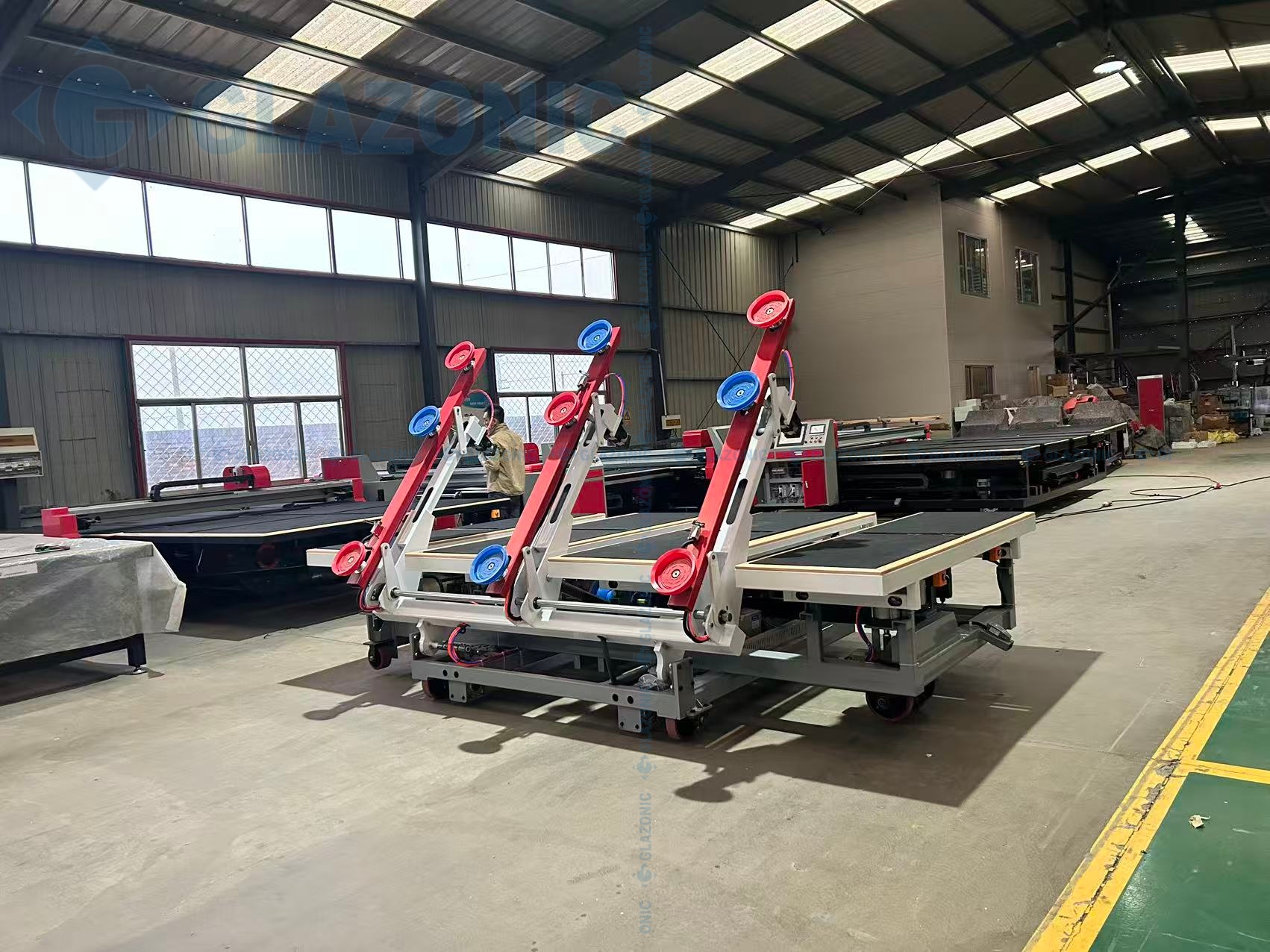

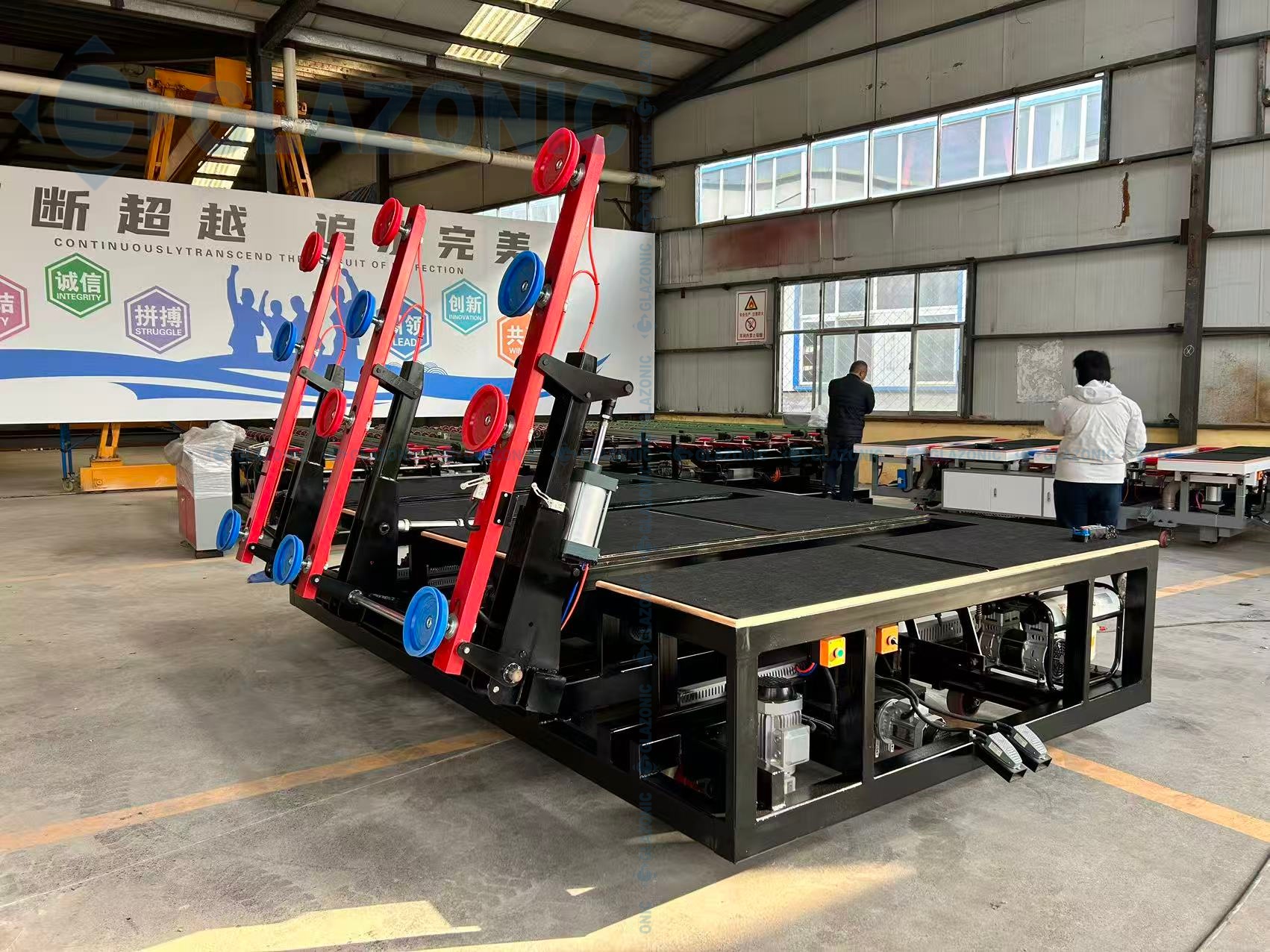

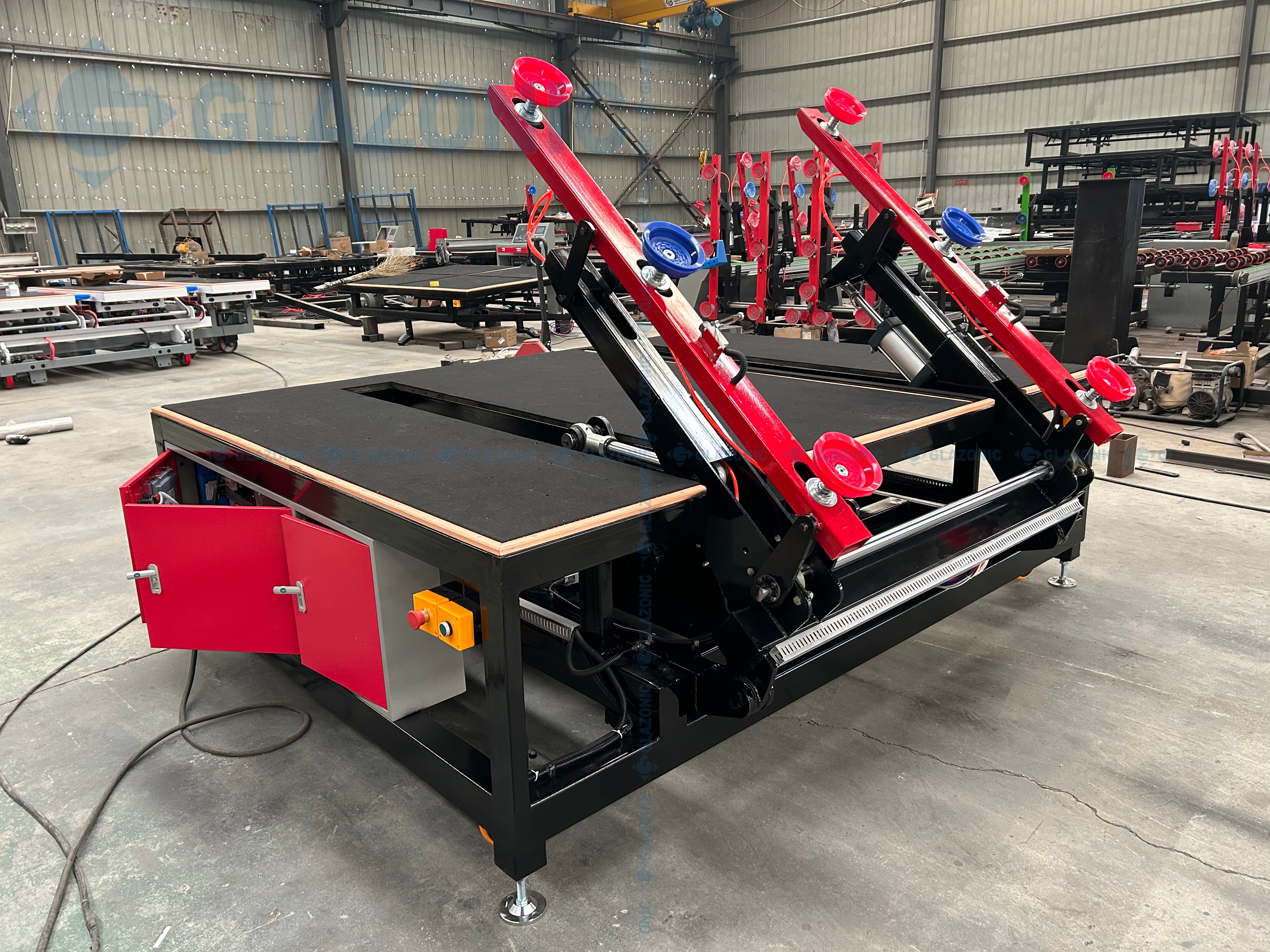

This glass loader adopts upgraded inclined large arm mechanical structure and high-power vacuum suction system, featuring strong bearing capacity and stable suction. It can automatically complete stacking glass suction, tilting lifting, positioning and table feeding, fully replacing manual operation. The whole machine adopts thickened steel frame and stress relief treatment, with stable operation and long service life. Equipped with industrial PLC intelligent control system, it supports one-key automatic cycle feeding, seamlessly docking with 2620 and 3726 glass cutting equipment. It is an essential auxiliary equipment for glass factories to realize automated feeding, improve production efficiency and reduce labor costs.

Core Functions

1. Dual Model Adaptive Matching
Two mainstream models are available: 2620 for 2600×2000mm medium and small glass processing, and 3726 for 3700×2600mm ultra-large glass processing. It perfectly supports matching cutting machines and production lines of the same model, with strong compatibility and no need for secondary debugging.
2. Upgraded Inclined Arm Stable Feeding
Adopts optimized inclined arm mechanical structure, which conforms to the physical handling principle of flat glass. The multi-group large-area vacuum suction cups form uniform suction coverage, effectively preventing glass shaking, slipping and corner cracking during feeding, greatly reducing the overall glass breakage rate.
3. Full Automatic Cycle Loading
Intelligent PLC control realizes fully automatic unmanned cycle feeding. After one glass sheet is loaded and cut, the equipment automatically resets and sucks the next sheet. It supports continuous batch production, greatly shortening production cycle and improving workshop output efficiency.
4. Wide Glass Thickness Adaptation
Adaptable to 3mm–15mm conventional flat glass, including architectural glass, door and window glass, furniture glass, mirrors and decorative glass. Adjustable suction pressure and feeding speed, freely matching different glass thicknesses and sizes to ensure feeding stability.
5. Multi-Dimensional Safety Protection System
Built-in vacuum suction loss protection, overload pressure protection, mechanical limit anti-collision and emergency stop self-lock functions. Once abnormal suction or mechanical jitter occurs, the equipment will automatically stop and alarm to avoid equipment failure and glass damage, ensuring safe and stable long-term operation.
6. Simple Integration & Low Maintenance
Modular integrated design, plug-and-play docking with cutting tables and production lines. The control program is pre-matched with 2620/3726 cutting systems, with low failure rate and simple daily maintenance, no professional technicians required for operation and maintenance.


Application Scenarios

Widely supporting matching production of 2620 and 3726 glass cutting machines, suitable for architectural door and window glass, curtain wall glass, furniture glass, shower room glass, mirror and decorative glass processing. It is applicable to small, medium and large glass processing factories, realizing automatic feeding supporting for single cutting machine and full automatic production line.

Product Advantages

✅ Model Matching & Strong Compatibility: 2620 and 3726 dual specifications precisely match cutting equipment of the same series, plug-and-play installation, no complicated debugging, saving workshop transformation time and cost.
✅ Stable Suction & Ultra-Low Breakage: Upgraded inclined arm structure + large-area vacuum suction cup group, uniform and stable suction force, effectively avoiding glass shaking and damage during feeding, greatly reducing production loss.
✅ High-Efficiency Automatic Feeding: Intelligent cycle feeding replaces manual handling, shortens single feeding cycle, significantly improves overall production efficiency, and solves the problem of labor shortage in workshops.
✅ Wide Adaptation Range: Supports 3–15mm multi-thickness glass processing, covering most flat glass processing scenarios in construction, furniture and decoration industries.
✅ Industrial Durable Structure: Thickened stress-relief steel frame and mature electrical accessories, stable long-term continuous operation, low failure rate and long service life.
✅ Full Safety Protection: Multiple safety protection mechanisms such as suction loss protection and anti-collision limit ensure zero-risk operation, protecting equipment and raw material safety.
